SPC-10S4

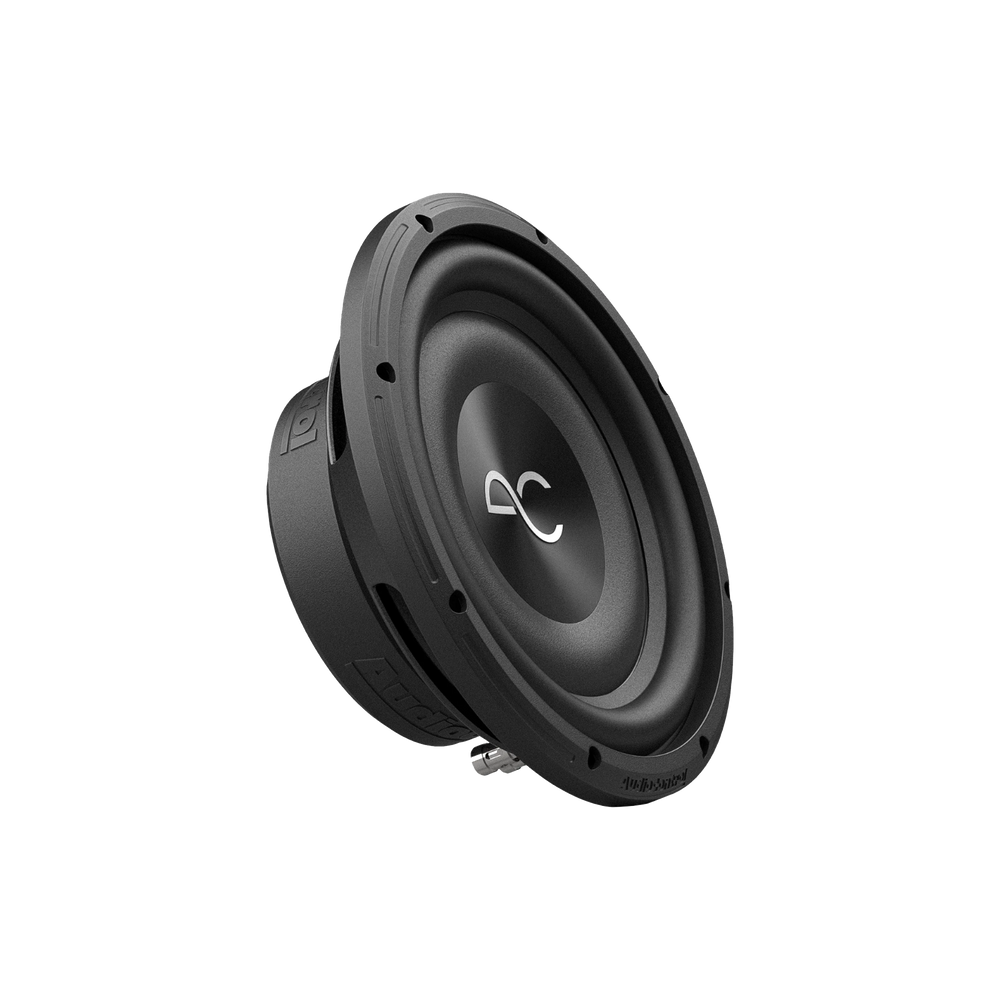

SPACE SERIES 10-INCH SINGLE 4-OHM LOW PROFILE SUBWOOFER

$199.00

Are you ready to take your musical experience to the next level? Look no further than the Space Series Subwoofers! These slim-yet-mighty subwoofers pack a big punch – delivering maximum low-frequency output in a shallow space. The ultimate solution for deep, rich bass in a sleek and slim design. Add in their weather-resistant features and you can enjoy your music in any environment, worry-free. No matter where you are, we know nothing beats blasting your favorite tunes and feeling your mood drastically improve. So what are you waiting for? Get the Space Series Subwoofers and enhance your vehicle’s listening environment by creating a powerful atmosphere of sound.

AudioControl has been helping people make good sound great in their cars for over 45 years, and the Space Series Subwoofers are no exception. The fiber matrix injection molded polypropylene cone ensures that every note is reproduced to perfection, so you can feel the bass hit. The 3-layer high temp voice coil former means they can handle even the most intense bass without breaking a sweat. And don’t worry about distortion ruining your jams – these subwoofers feature an optimal thermal efficiency design to ensure that your bass stays clean and clear. Not only do these subwoofers sound amazing, they’re also built tough. With their weather-resistant design and removable grille you can enjoy your music even if your vehicle likes to play off-road.

FEATURES

  • Low-Profile Shallow Mount Subwoofer
  • Fiber Matrix Injection Molded Polypropylene Cone
  • Weather-Resistant Design
  • 3-Layer High Temp Voice Coil Former
  • Optimal Thermal Efficiency
  • Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
  • Removable Subwoofer Grille Included

SPECIFICATIONS

THIELE/SMALL PARAMETERS

Nominal Impedance (Z)                4 ohms

DC Resistance (Re) ]]                    3.2 ohms

Resonance Frequency (Fs)          37.3460 Hz

Piston Area (Sd)                            0.0330 m2

Force Factor (BL)                          14.0082 T.m

Mechanical Q Factor (Qms)         2.8618

Electrical Q Factor (Qes)              0.4044

Total Q Factor (Qts)                      0.3543

Sensitivity 1W/M (SPL)                 87.2957

Mechanical Comp (Cms)              0.1719 mm/N

Moving Mass (Mms)                     105.6787 g

Linear Excursion (Xmax) .           9 mm

Volume Acoustic Comp (Vas)    26.1432 Ltr/0.923238 cu ft

Reference Efficiency (NO.)           0.32% RMS

Power (Pe)                                     400 Watts

Frequency Response                   20-250 Hz

Voice Coil Diameter                    2.5 in/63.5 mm

Displacement                                0.045 cu ft/ 1.275 Ltr



IN THE BOX:

SPC-10S2, Manual, Warranty

DIMENSIONS

  • Overall Dimensions: 10.39 in/ 264 mm
  • Cut Out Diameter: 9.13 in/ 232 mm
  • Mounting Depth: 3.5 in/ 89 mm
  • Mounting Height (w/o Grille): 0.71in / 18mm
  • Mounting Height (w/ Grille): 1.22 in / 31mm

PORTED ENCLOSURE

  • External Dimensions: 24.00″ W × 14.50″H × 12″D
  • Net Internal Volume:  1.40 ft3
  • Total Internal Volume:  1.75 ft3
  • Gross External Volume:  2.38 ft3
  • Material Thickness: 0.75″
  • Tuning Frequency: 40 Hz
  • Port Area” 22.75 inch2
  • Port Inlet:  1.75″W× 13″H
  • Port Length:  22.25″
  • F3 (Hz):  34

SEALED ENCLOSURE

  • External Dimensions: 26″ W × 14.50″H × 5.00″D
  • Net Internal Volume:  0.60 ft3
  • Total Internal Volume: 0.65 ft3
  • Gross External Volume: 1.09 ft3
  • Material Thickness: 0.75″
  • F3 (Hz): 60
  • Qtc:  0.703

*Enclosure size recommendations do not include driver and/or port displacement
