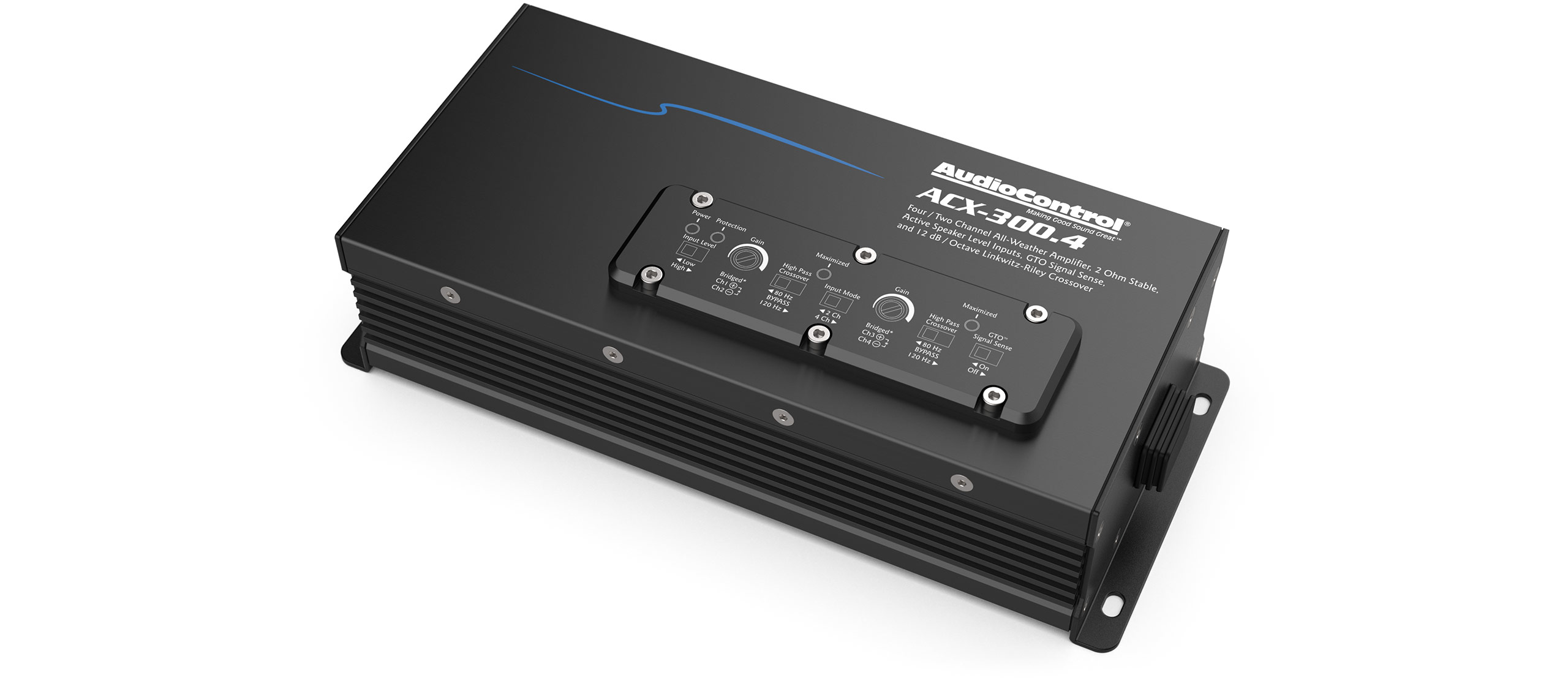

acx-300.4-left
acx-300.4-left

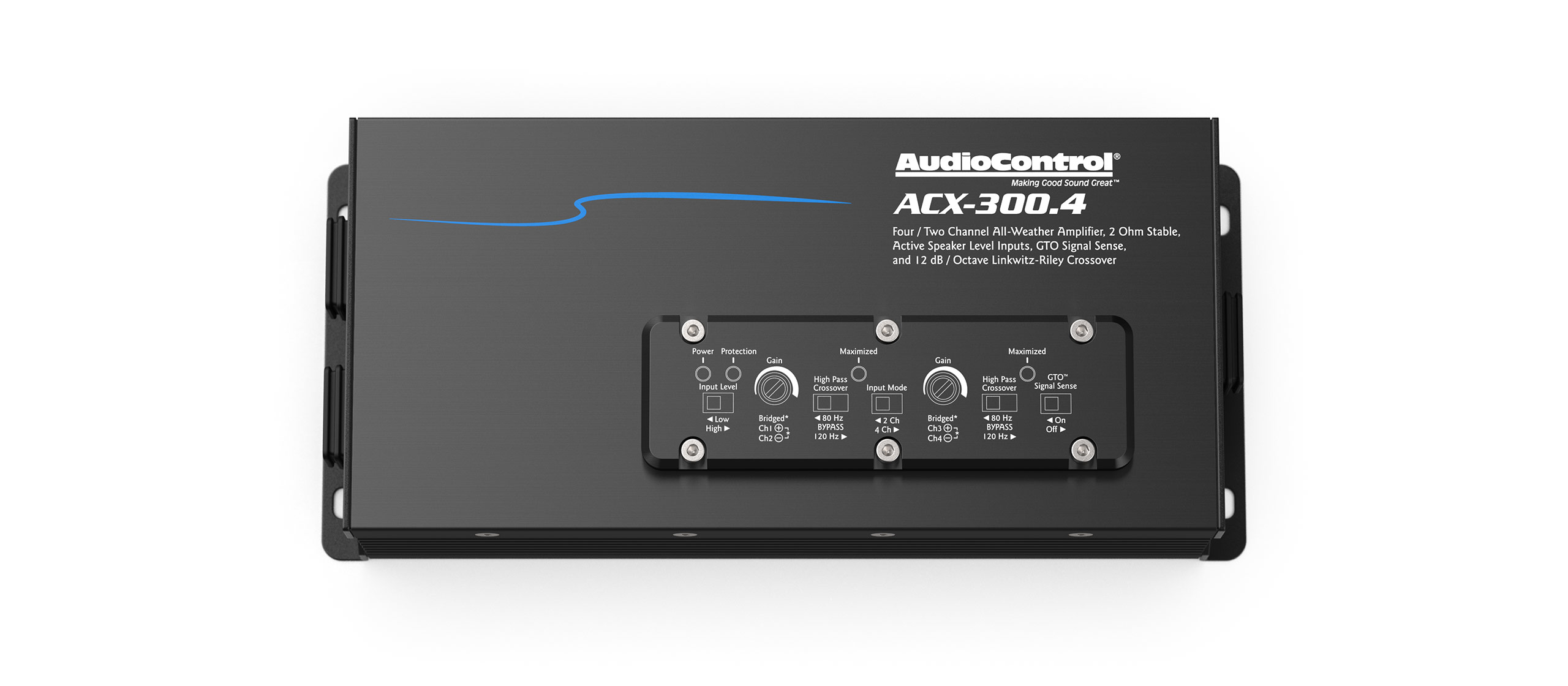

acx-300.4-top
acx-300.4-top

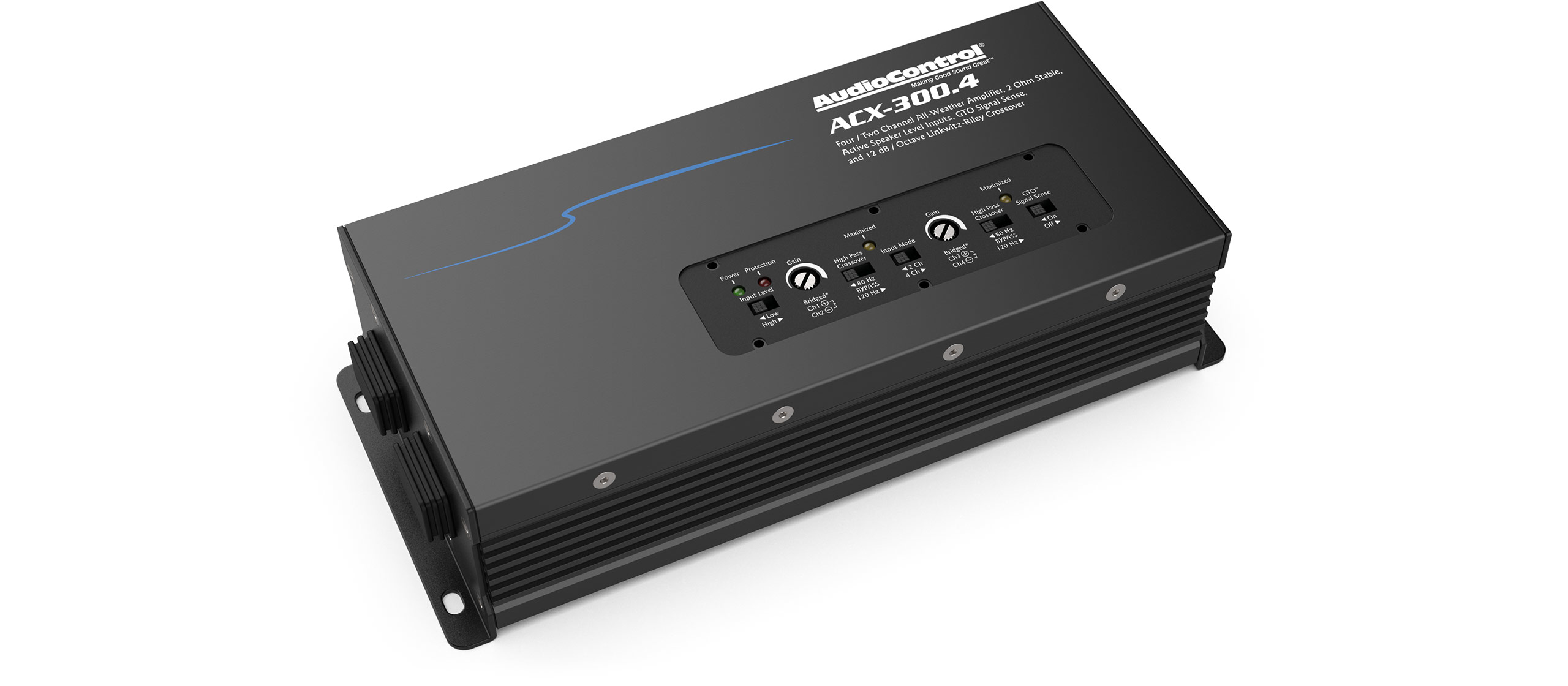

acx-300.4-right-cover-off
acx-300.4-right-cover-off

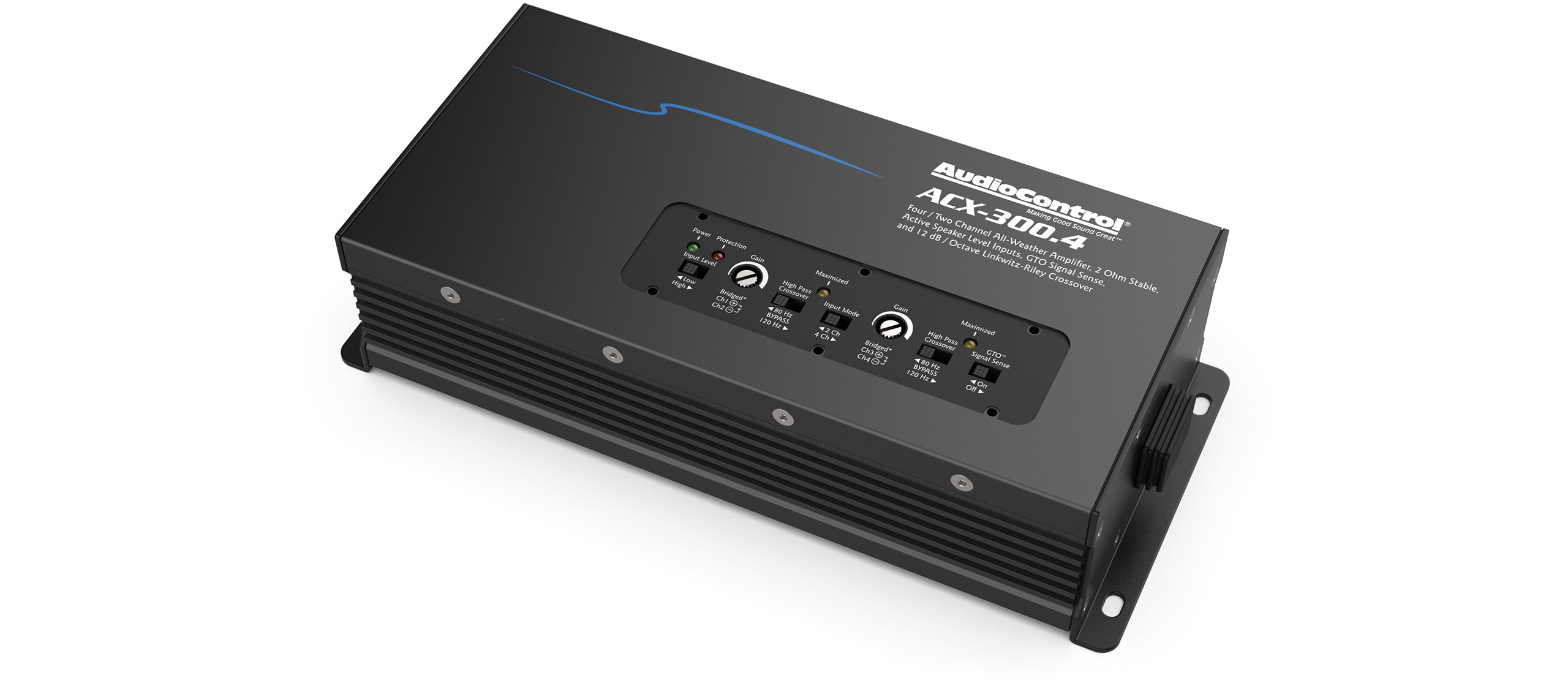

acx-300.4-left-cover-off
acx-300.4-left-cover-off

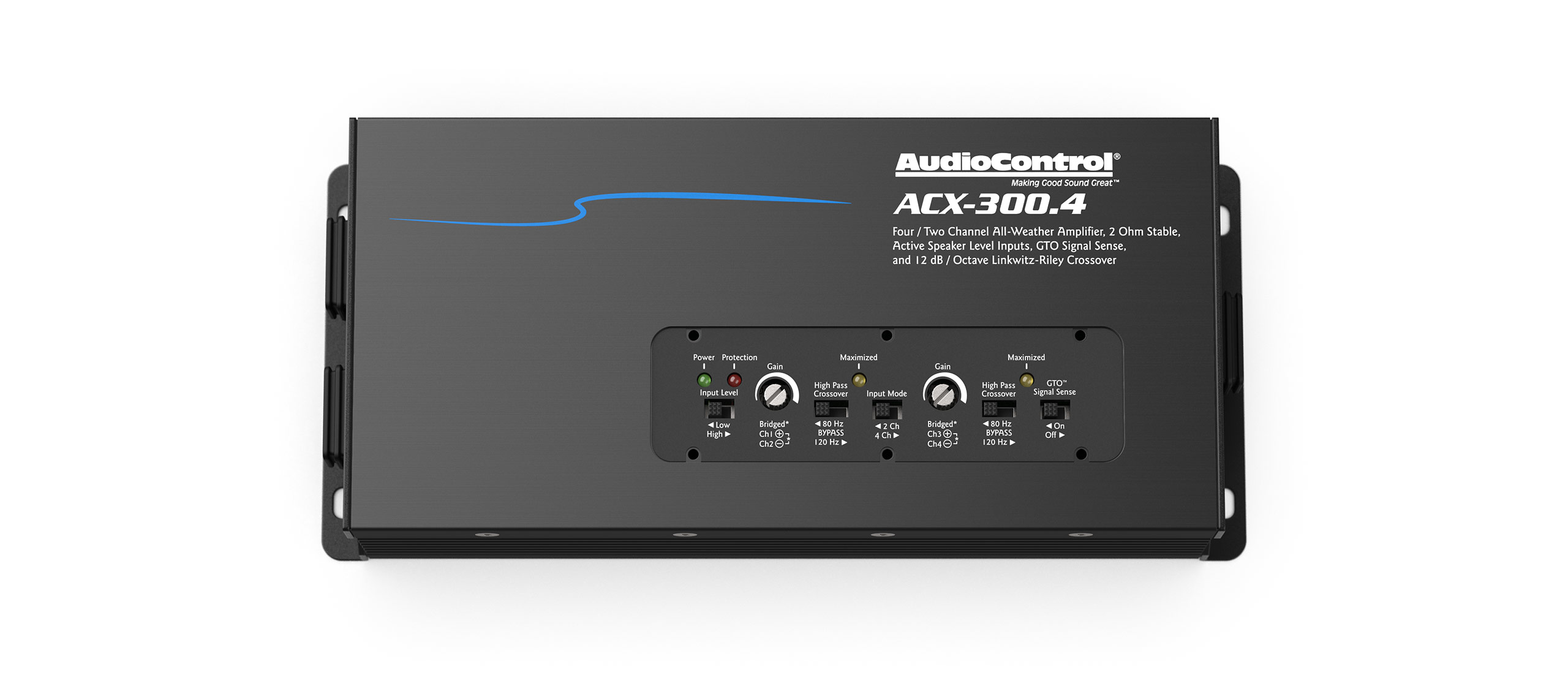

acx-300.4-top-cover-off
acx-300.4-top-cover-off

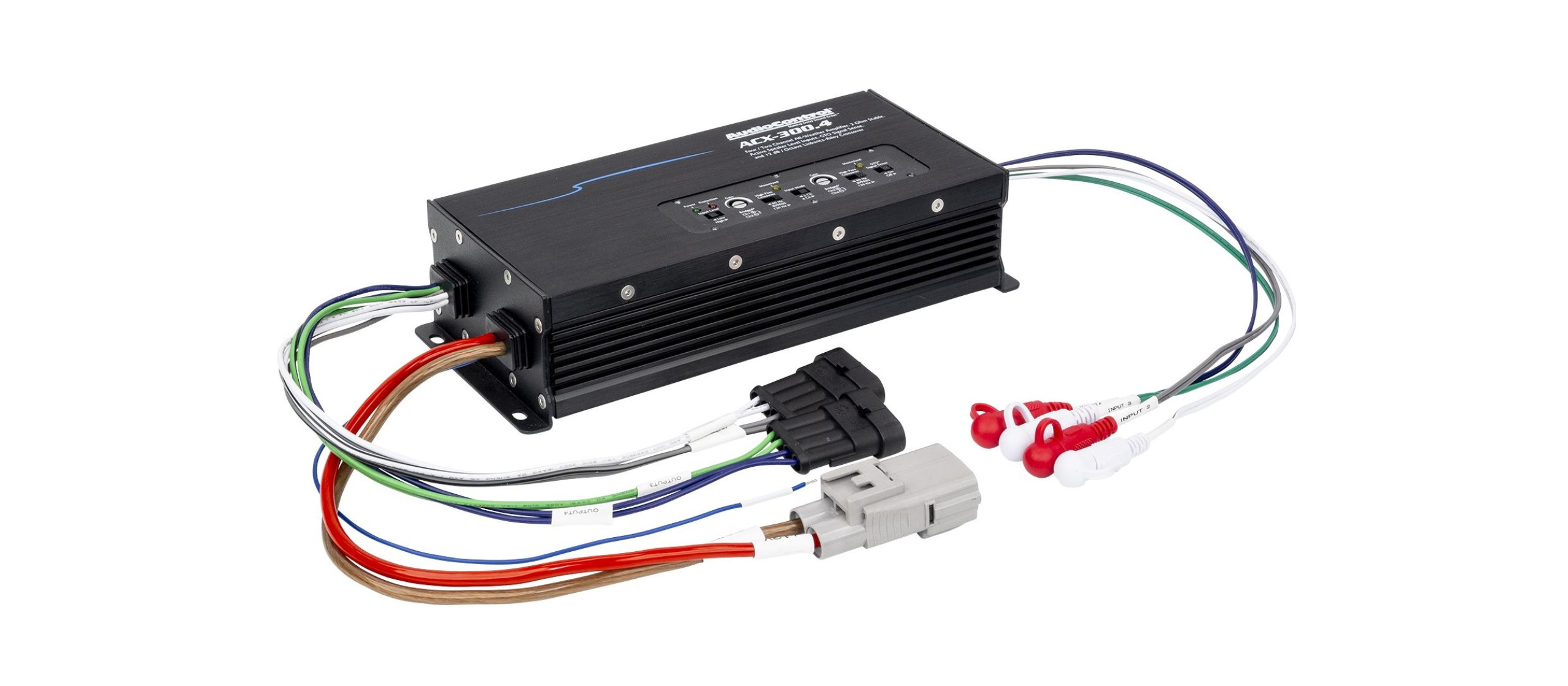

ACX300.4
ACX300.4

ACx-300.4

all weather four channel AMPLIFIER

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.

FEATURES

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • IPX6 Rated
  • GTOTM Signal Sense
  • High and low input modes
  • 4 and 2 channel input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

INPUT LEVEL SWITCH

MAXIMIZED LED

CROSSOVER SWITCH

INPUT MODE SWITCH

GTO™ SWITCH

SPECIFICATIONS

INPUTS

  • Preamp/Speaker Level Inputs: 4
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 50 W x 4 RMS
    • 2 Ω – 75 W x 4 RMS
    • Bridged 4 Ω – 150 W RMS

PERFORMANCE

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.2%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

GENERAL

  • Recommended Fuse Rating: 30A

WEIGHTS & DIMENSIONS

  • Dimensions: 9.0″W x 3.875″D x 2.25″H
  • Weight: 7.2 lbs. (3.3 kg)

IN THE BOX: ACX-300.4, Manual, Warranty
