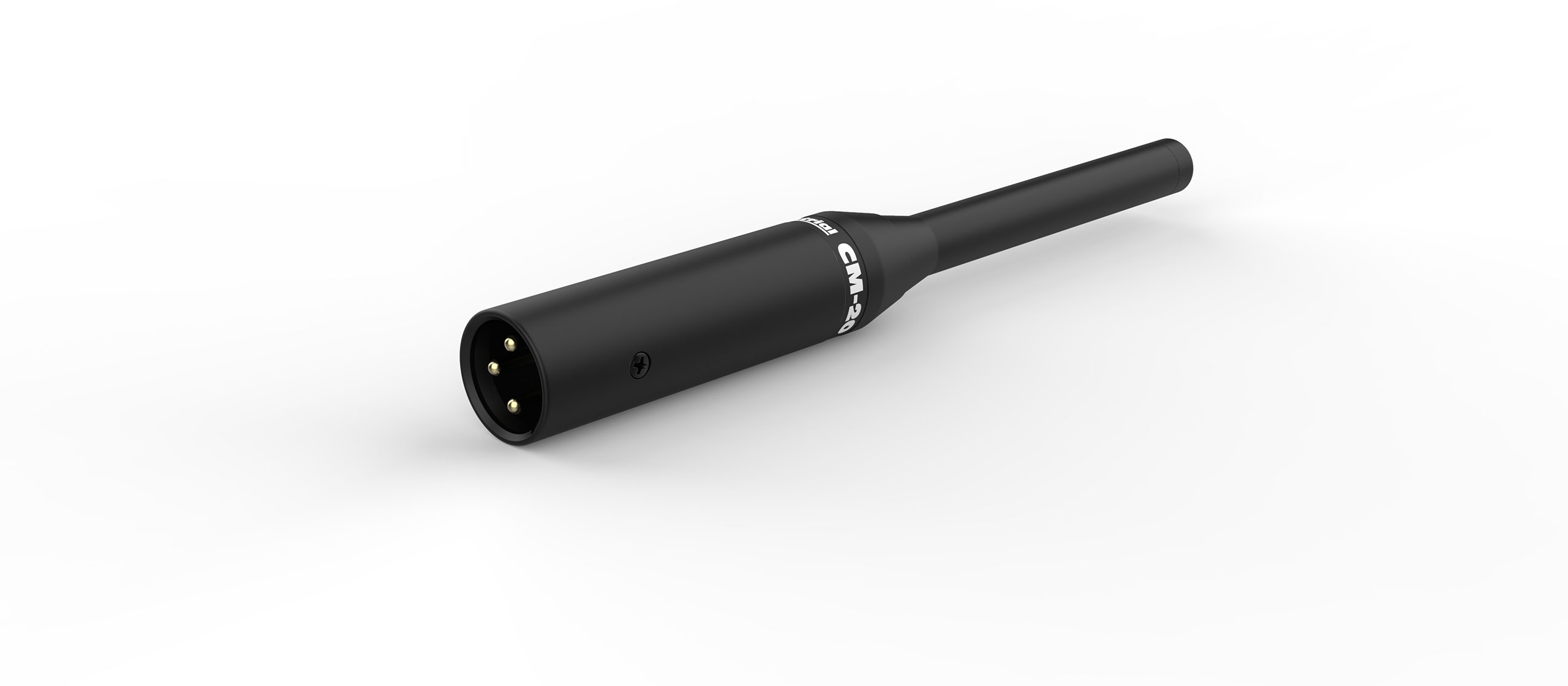

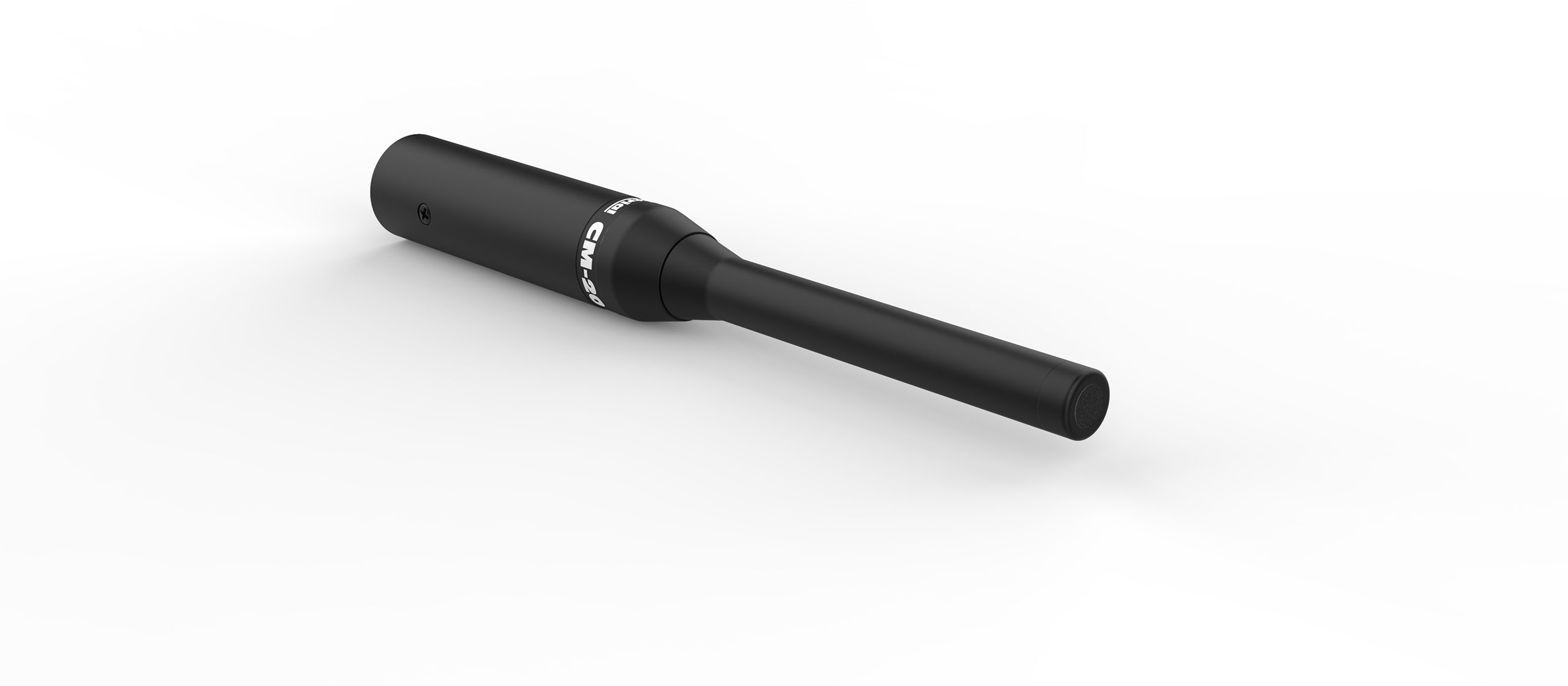

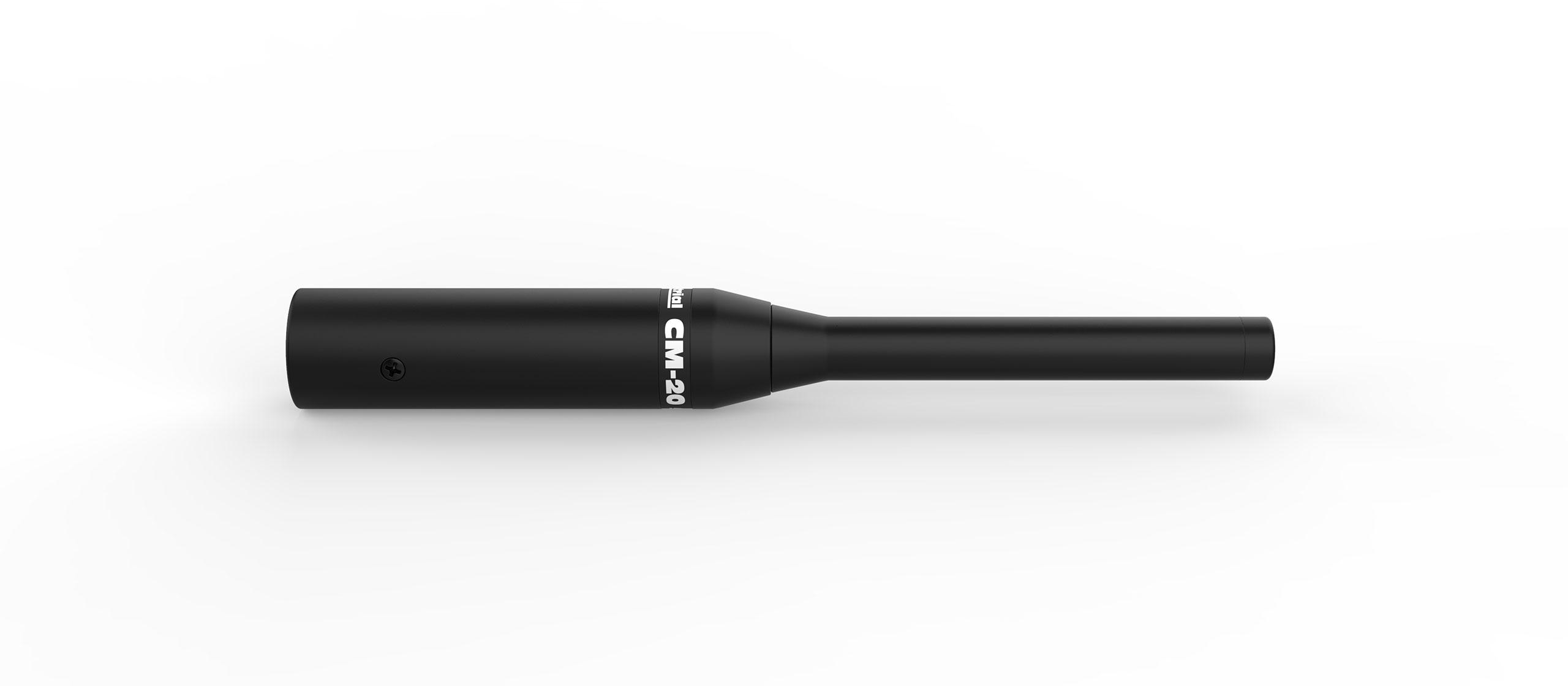

cm-20

EVERYDAY MEASUREMENT MICROPHONE

An excellent everyday, budget measurement microphone with commendable frequency response for its price. The CM-20 is a ¼” back electret condenser microphone with omni-direction pickup, phantom powered and XLR connector. Rugged construction is part of its appeal. At this price, now you can afford to have a spare.

Check out the CM-120 kit of CM-20 and cool carrying bag, clip and windscreen. Also the individually calibrated mIcrophone kit, the CM-125.

SPECIFICATIONS

PERFORMANCE

  • Frequency Response: 20Hz – 20kHz ±3dB
  • Polar Pattern: Omnidirectional
  • Impedance: 250Ω
  • Phantom Power: 10 – 52Vdc
  • Connector: 3 pin XLR, pin 2 positive

WEIGHTS & DIMENSIONS

  • Tip Diameter: 10 mm (.39 inches)
  • 145 mm ( 5.7 inches)

IN THE BOX: CM-20 Microphone
