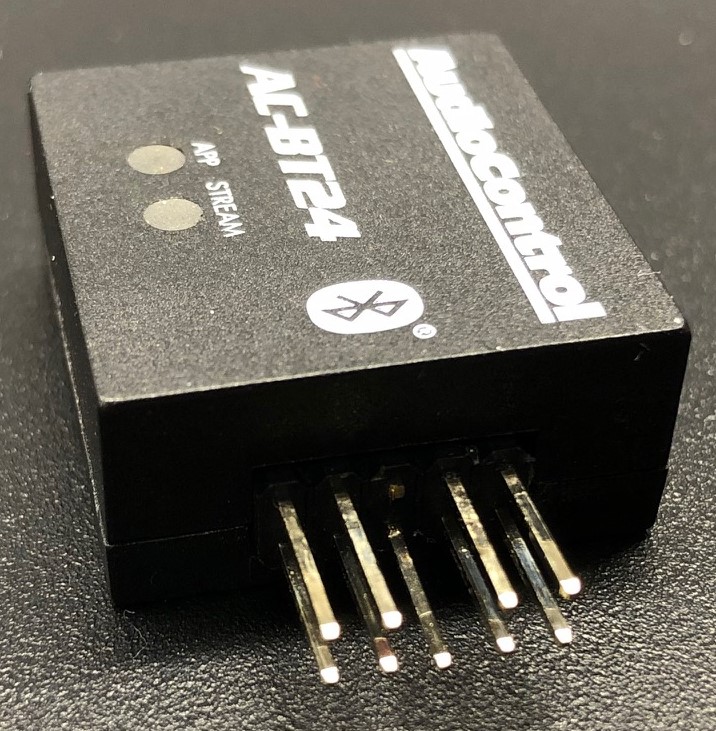

If you’ve noticed that your AC-BT24 Bluetooth module is missing the top row center pin, your AC-BT24 is not broken, it is designed with only 9 pins.

For instructions on how to connect the AC-BT24 to your mobile device for streaming audio or for accessing the control functions of your DSP processor please refer to our KB articles here.
