The LC2i Pro has our AC-LGD load generating devices built in!

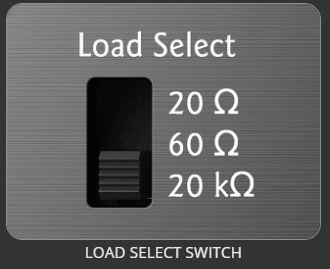

The LC2i PRO is designed to present NO load to the output of the factory amp, which can make some factory amps upset and stop passing audio. The Load Selection feature tricks the factory amp in to detecting a speaker load so it will continue to pass audio.


20 Ω – Best suited for late model Dodge/Chrysler/Jeep vehicles equipped with OEM base sound system. (no separate factory amplifier)


60 Ω – Best suited for late model Dodge/Chrysler/Jeep vehicles equipped with a separately amplified OEM “premium” sound system.


20 kΩ – Best suited for all other vehicles.

The individual AC-LGD’s are also available for those installations where you are not using the LC2i PRO:

AC-LGD (Blue)

AC-LGD-20 (Green)

AC-LGD-60 (Grey)

Associated information:

Trigger Modes

How to setup AccuBass

How to set Output Gain
