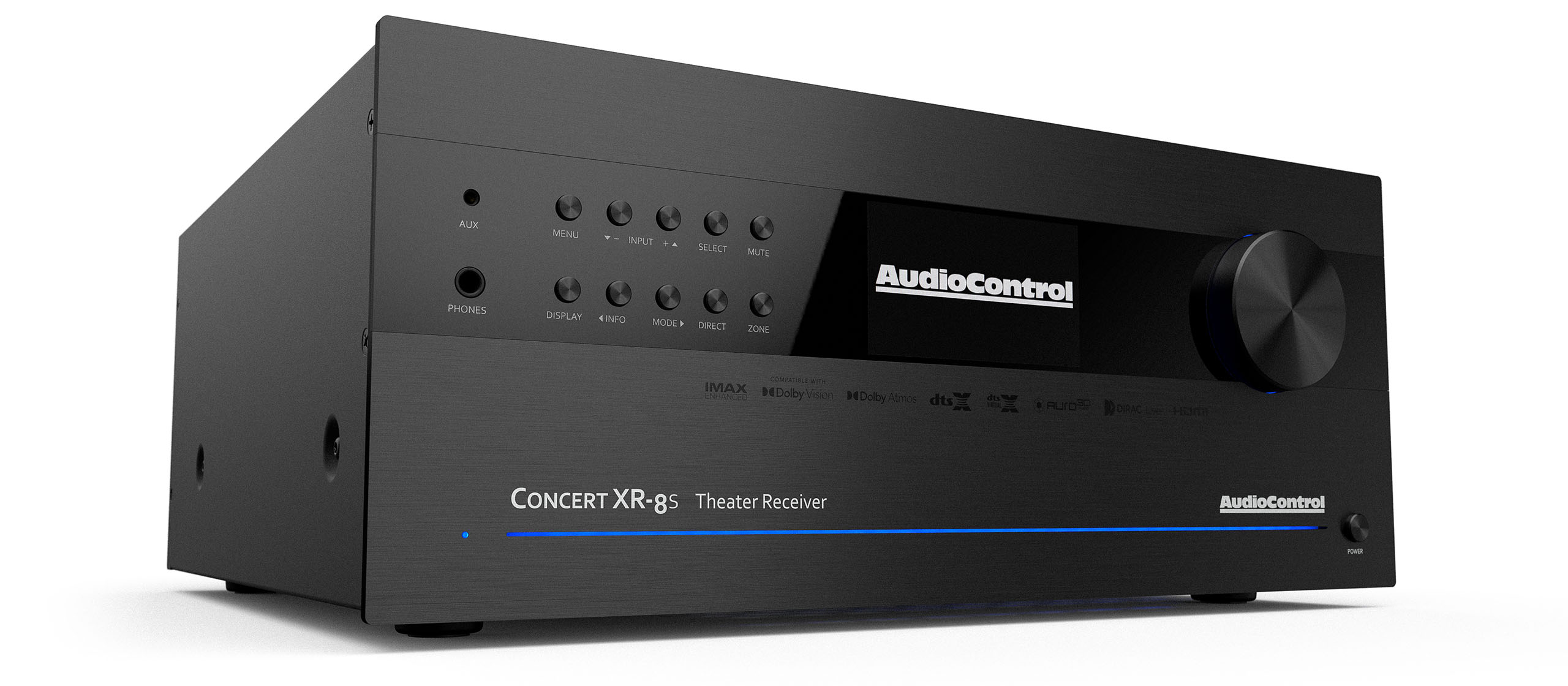

xr-8s-right_new
xr-8s-right_new

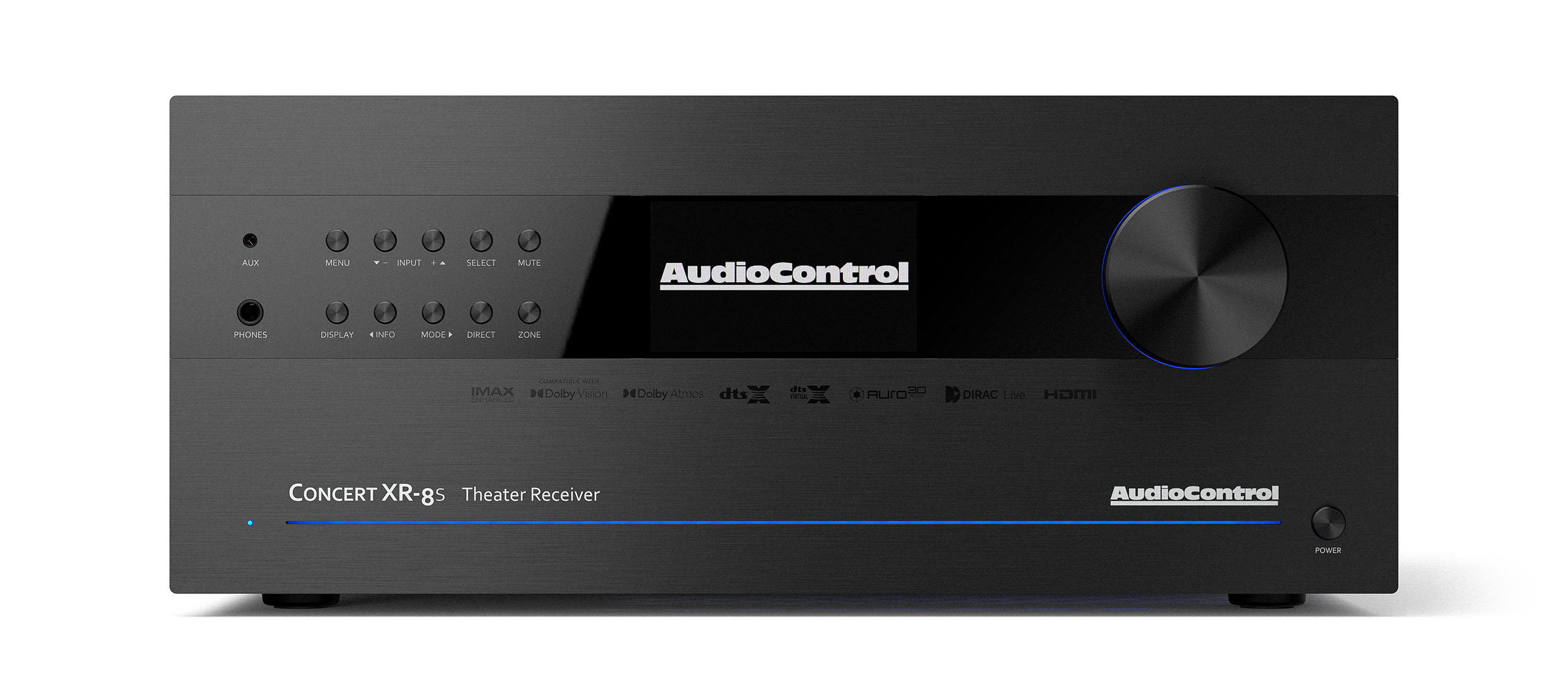

xr-8s-front_new
xr-8s-front_new

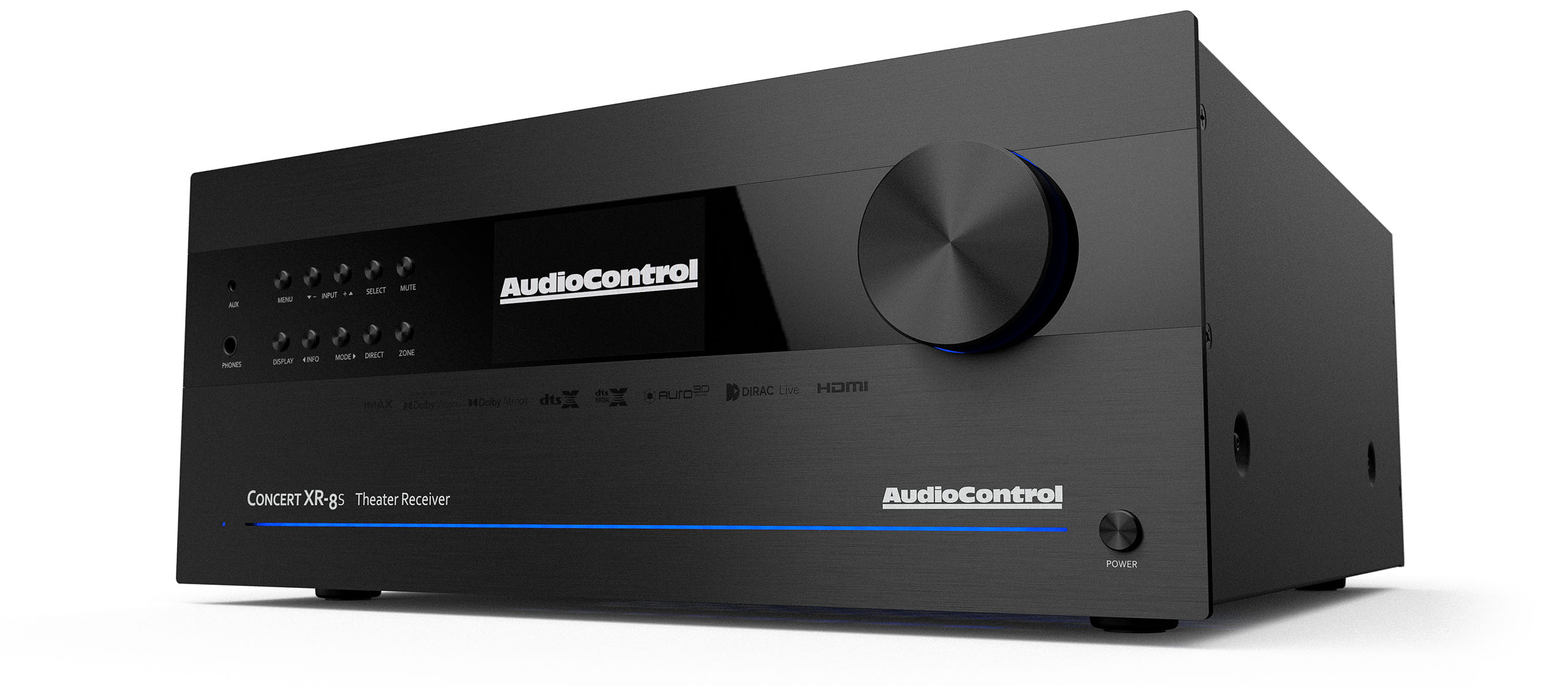

xr-8s-left_new
xr-8s-left_new

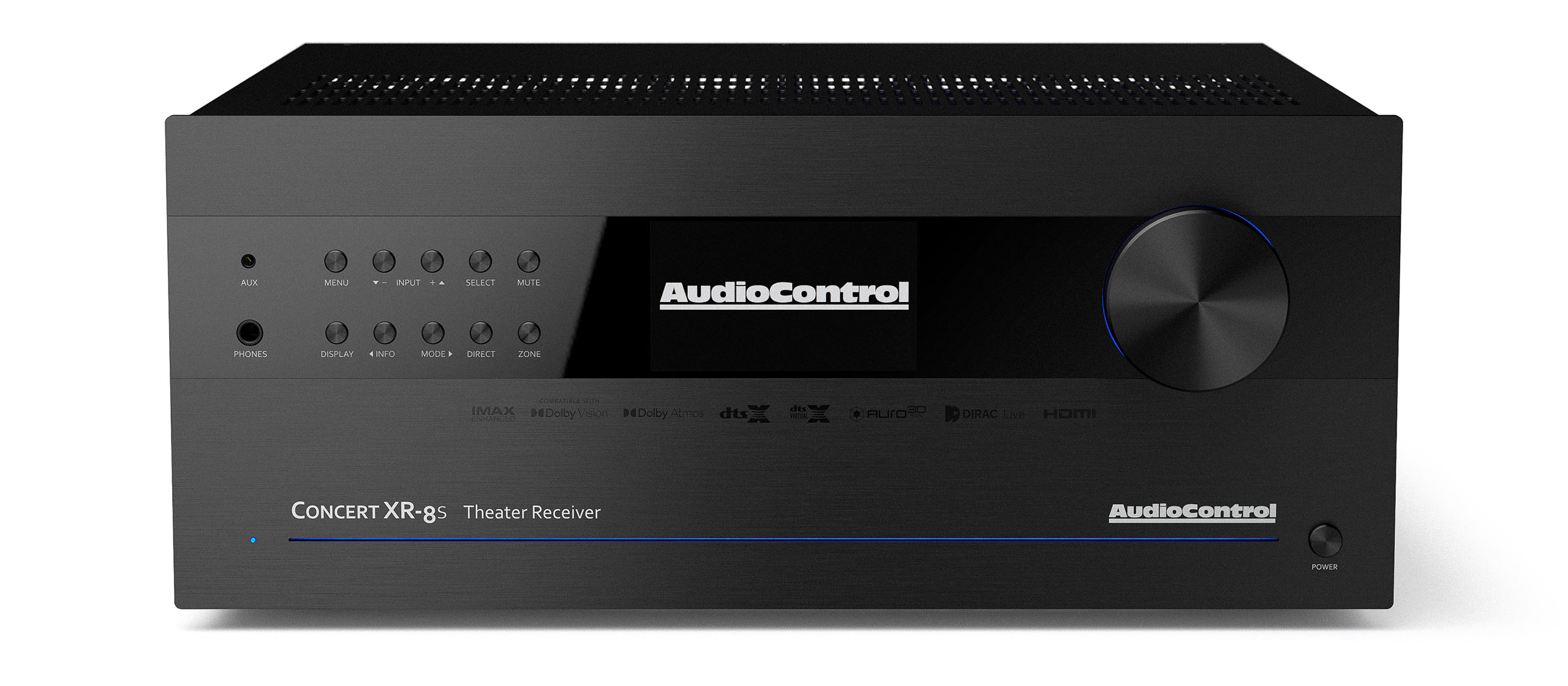

xr-8s-front-high_new
xr-8s-front-high_new
xr-6-8-rear_new
xr-6-8-rear_new
previous arrowprevious arrow
next arrownext arrow

concert XR-8S

8k uhd 9.1.6 IMMERSIVE AV receiver

AudioControl’s high-performance AV receivers enable home theater specialists and integrators to create systems that deliver new levels of precision, power and control. The Concert XR-8S supports the most sought after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 16-channels of unbalanced outputs including four user-configurable outputs. The Concert XR-8S offers a full complement of inputs for connection to the latest audio/video components.

The Concert XR-8S houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space, and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response. Seven amplified channels deliver 120 watts per channel at 8 ohms and 200 watts per channel at 4 ohms.

Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.

All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Receiver lineup from any other solution.

Support files >

fEATURES

  • 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
  • 8K UHD / HDMI 2.1 and HDCP 2.3
  • All inputs support 8K/60P and 4K/120P
  • ES9026PRO SABRE audiophile DACs (124 dB of dynamic range)
  • Includes Dirac Live® & Dirac Live® Bass Control
  • 7 channels of high power Class H amplification
  • Supports Dolby Vision, HDR10+, HDR10, and HLG
  • 4 user-assignable output channels
  • 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
  • IP, IR, RS232, and Wifi control
  • Apple® AirPlay 2
  • Google Chromecast built-in streaming support
  • Bluetooth® with aptXHD® support
  • Roon Ready and supports MQA

Dolby Atmos®

Dolby Atmos for the home represents every sound in the original cinema mix as an audio object. Extensions to the Dolby Audio CODECs, along with an advanced scalable algorithm, allow Dolby Atmos to be delivered via Blu-ray Disc and streaming media. AudioControl's Immersive AV Receivers and Processors adapt the cinema experience to your home theater using up to 16 channels, recreating the original artistic concept.

Dolby Vision®

Dolby Vision is advanced high dynamic range (HDR). A new capability in today's cutting-edge televisions, HDR complements HD and UHD displays. Rather than increasing resolution, HDR focuses on the brightness, contrast, and color of the image. While these benefits have been talked about in the past, one look at a new HDR display reveals a powerfully enhanced TV image. AudioControl's Immersive AV Receivers and Processors fully support playback of Dolby Vision content.

DTS:XTM

Creating a lifelike audio experience in a cinema or at home has always presented a challenge. DTS:X makes sound move around you like it would in real life - without requiring specific speakers or custom configurations. Moviemakers can now immerse you deeper in the experience than ever before. AudioControl's Immersive AV Receivers and Processors support DTS:X and will bring the mix designed for movie theaters into your home.

IMAX Enhanced®

AudioControl’s IMAX Enhanced Immersive AV Receivers and Processors feature DTS:X immersive audio decoding that is optimized to properly reproduce the full dynamic range of IMAX theatrical sound mixes available in IMAX Enhanced content. With meticulous adjustments modeled on the IMAX theatrical sound system, this proprietary IMAX audio mix is translated for home theater environments and exclusively delivered using a special variant of the DTS:X codec technology to deliver the IMAX signature sound experience in the home. Additionally, IMAX is working with its global studio and content partners to make available a steady stream of IMAX Enhanced versions of blockbuster movies and additional programming.

auro-3d®

Auro-3D is the next generation three-dimensional audio standard. It provides a realistic sound experience unlike anything before. By fully immersing the listener in a cocoon of life-like sound, Auro-3D creates the sensation of actually 'being there'. Thanks to a unique 'Height' channel configuration, acoustic reflections are generated and heard naturally due to the fact that sounds originate from around as well as above the listener.

Dirac Live® & Dirac Live® Bass Control

AudioControl's Immersive AV Receivers and Processors use a built in proprietary automatic loudspeaker setup function from Dirac Research. Dirac Live determines the essential speaker settings for all the speakers in your system, calculates room equalization (Room EQ) filter values to remove some of the worst effects of resonant frequencies in the listening room. Dirac Live Bass Control delivers spatially consistent bass response to make the most of your subwoofer setup. The result is improved staging, better clarity and intelligibility in music and vocals, and deeper, tighter bass without resonance.

ROON READY

Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that AudioControl network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and AudioControl deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

SPECIFICATIONS

INPUTS

  • Audio Inputs: 7 HDMI, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
  • Nominal sensitivity: 1V, 2V, 4V (user selectable)
  • Input Impedance: 47 kΩ
  • Signal to Noise (A-wtd ref 100W) normal/stereo direct: 100 dB/110 dB
  • Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
  • Video Inputs: 7 HDMI (HDMI 2.1 / HDCP 2.3)

OUTPUTS

  • Amplifier Channels: 7
  • Continuous power output, per channel, 8Ω / 4Ω:  120W/200W
  • Minimum Speaker Load: 4Ω
  • Preamp Audio Outputs: 16 channels (unbalanced RCA), 2 channels Zone 2 (unbalanced RCA), 1 Toslink
  • Nominal output level: 1 Vrms (max. 5 Vrms)
  • Output impedance: 560 Ω
  • THD+N (20 Hz – 20 kHz): -100dB
  • Main Video Outputs: Dual (2) HDMI (eARC support)
  • Second Zone Output: 1 HDMI
  • Headphone Output: 1 1/4″

CONTROL

  • IP Ethernet
  • Wifi
  • RS232 Serial Control
  • 12 Volt Trigger Outputs: 2
  • IR Receiver Inputs: 2

general

  • Power consumption (standby): <0.5W
  • Power consumption (idle, typical): 90W (340 BTU/hour)
  • Power consumption (maximum): 1500W (5200 BTU/hour

GENERAL

  • Power Consumption (standby): <0.5W
  • Power Consumption (idle, typical usage): 100W
  • Power Consumption (maximum): 1500W
  • BTU/Hour Heat Dissipation (idle): 340
  • BTU/Hour Heat Dissipation (maximum): 5200

WEIGHTS & DIMENSIONS

  • Dimensions (including terminals and feet): 17”W x 17.5”D x 7.3”H (4U)
  • Weight: 40.3 lbs. (18.3 kg)

IN THE BOX: Concert XR-8S, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty
