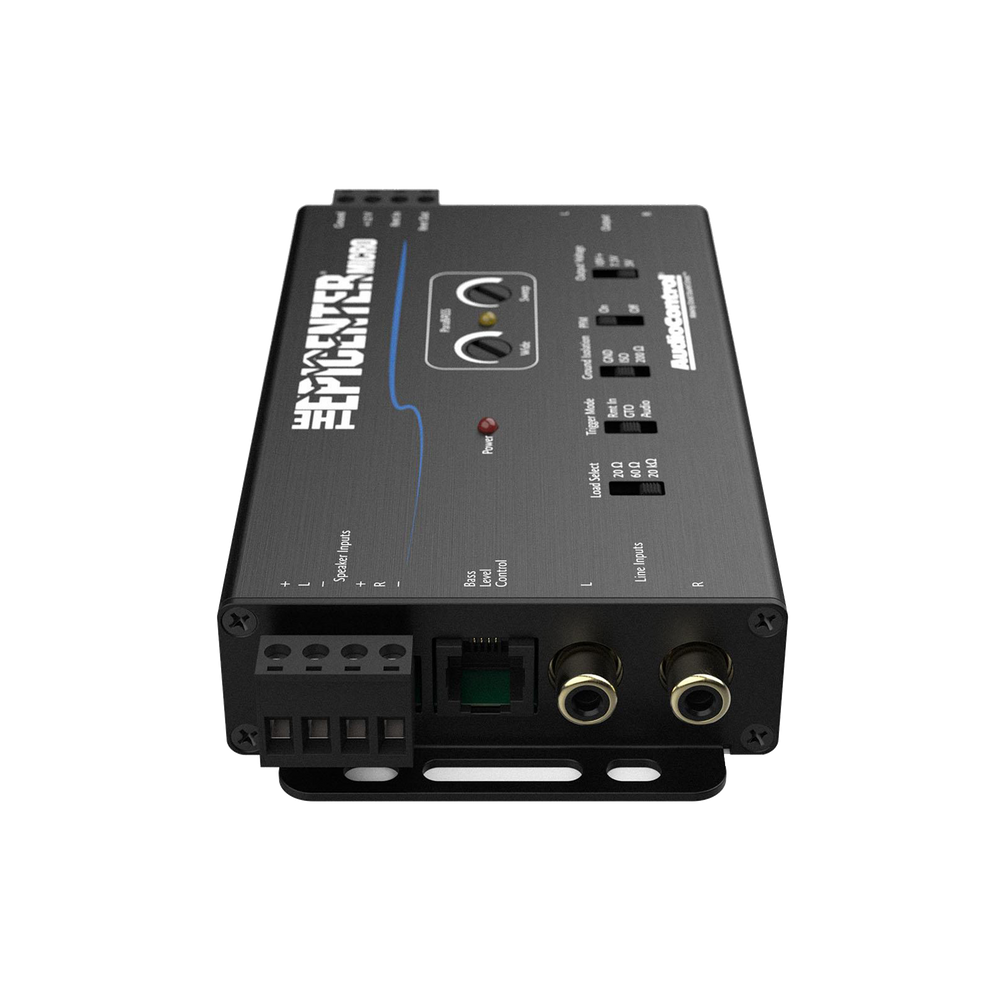

THE EPICENTER® MICRO

bass restoration processor & line output converter

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.

FEATURES

  • Patented Digital Bass Restoration
  • ParaBASS® Bass Shaping
  • Speaker and Line Level Inputs
  • Load Matching Circuit
  • Multiple Trigger Modes

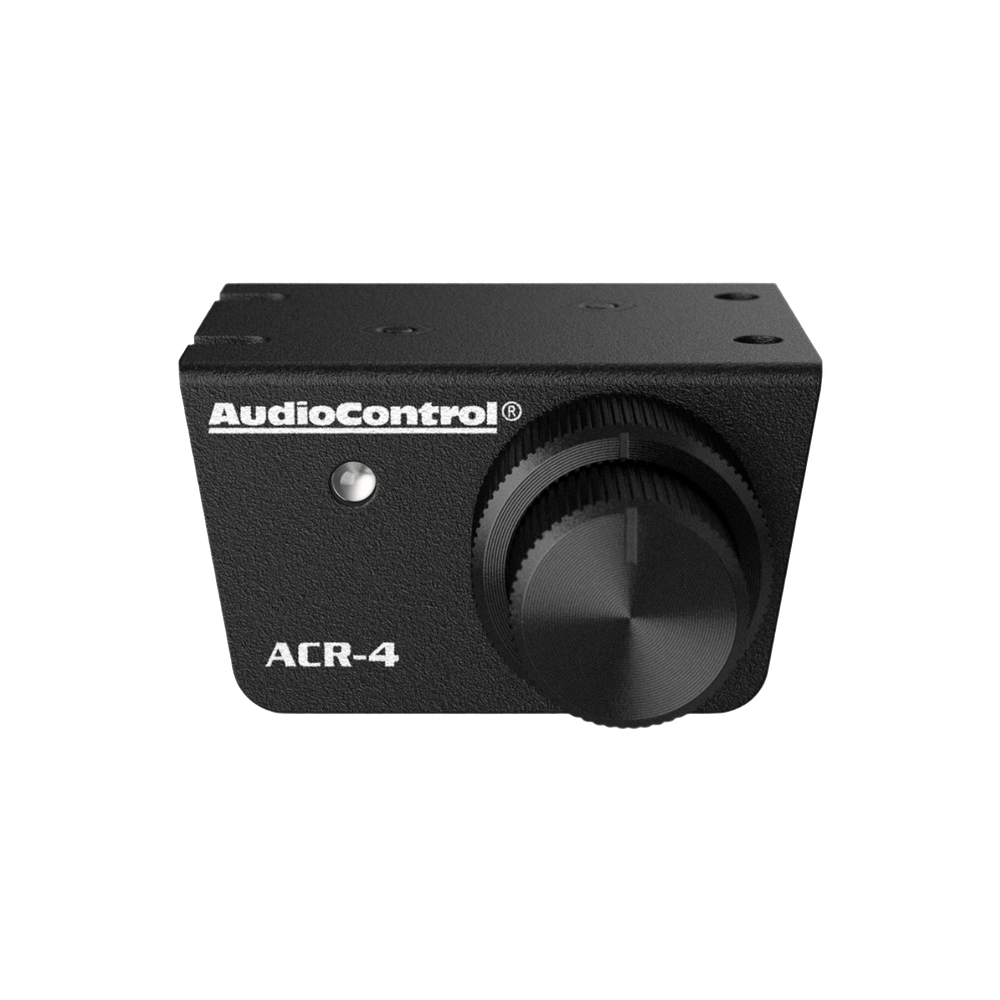

  • ACR-4 Dual Knob Dash Mount Control Included
  • Conformally Coated PCB for Increased Resistance to the Elements

ACCUBASS® STATUS LED

MAIN OUTPUT

VARIABLE BASS OUTPUT (1 KHZ LP)

MAXIMIZED LED

LOAD SELECT SWITCH

TRIGGER MODE SWITCH

SPECIFICATIONS

INPUTS

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
  • Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
  • Line Level Input: 1 (2 channels)
  • Line Level Input Impedance: 7kΩ

OUTPUTS

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: >105 dB
  • Frequency Response: 10 Hz – 22 kHz ±1 dB

CONTROL

  • Remote In / GTO™ Signal Sense / Audio Sense
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Current Draw: 300 mA
  • Recommended Fuse Rating: 1 A

WEIGHTS & DIMENSIONS

  • Dimensions: 5.9″L x 3″D x 1″H
  • Weight: 0.6 lbs. (0.27 kg)

IN THE BOX: The Epicenter Micro, ACR-4, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
