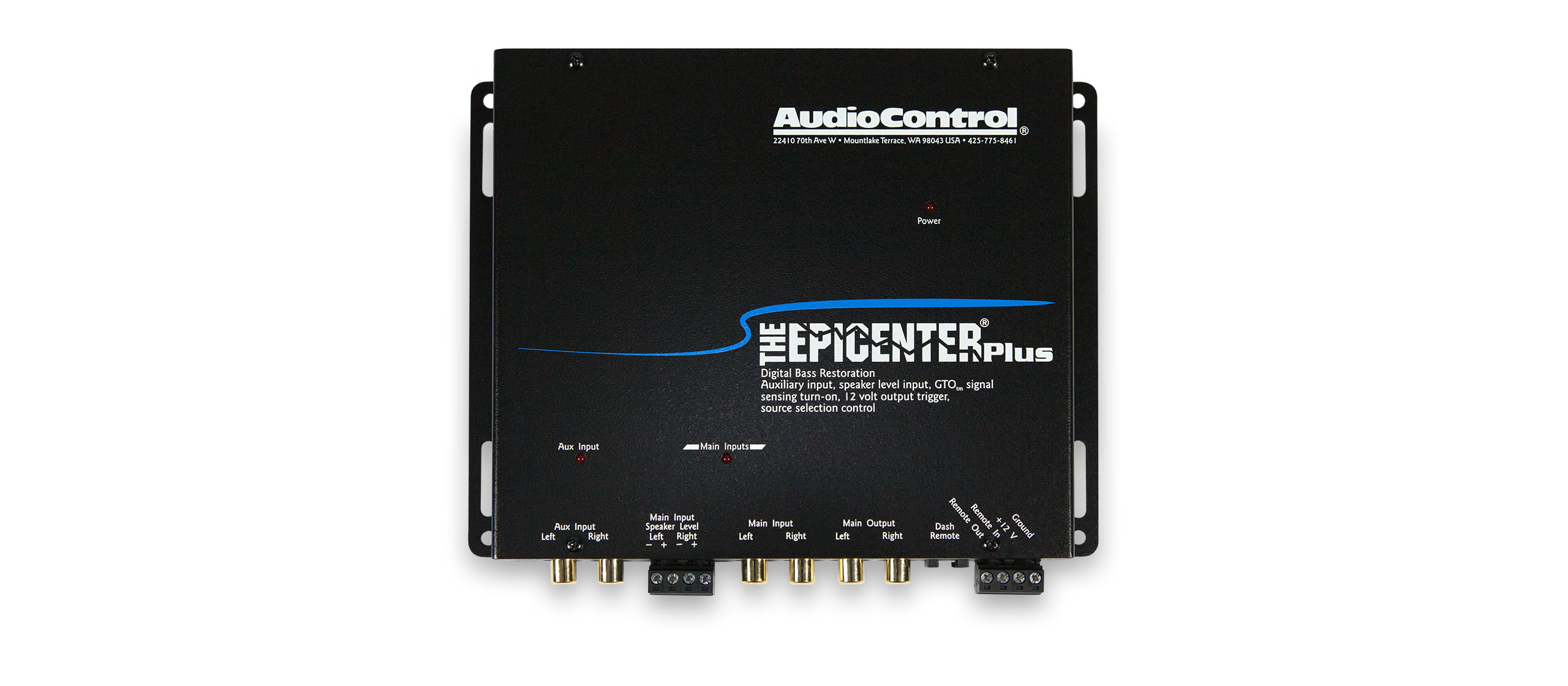

THE EPICENTER® PLUS

BASS RESTORATION PROCESSOR WITH AUX INPUT

Adding impactful bass to your factory installed system is simple with The Epicenter® Plus. The added OEM Interface on The Epicenter Plus converts your speaker-level signals into high quality pre-amp outputs to give you More Bass, LOUDER! Plus, you get an auxiliary input for adding secondary sources (like iPods and Satellite Radio).

The high-impedance Speaker Level Inputs allow you tap off factory speaker leads for simple addition of aftermarket subwoofers to any factory audio system. AudioControl’s exclusive GTO™ Signal Sense Turn-on and corresponding 12-volt remote output provide the turn-on lead for aftermarket amplifiers. In addition to speaker-level inputs, The Epicenter Plus has line-level inputs for use with aftermarket systems.

The Epicenter Plus uses AudioControl’s famous Digital Bass Restoration to drive your subwoofers lower, grabbing the attention of every ear on the boulevard.

FEATURES

  • Patented Bass Restoration Circuitry
  • Speaker-Level Inputs for Integration with Factory Audio Systems
  • Auxiliary Input for iPod’s, MP3 players or Satellite radio tuners
  • GTO™ Signal Sensing Inputs for Automatic Turn-on
  • Bass Maximization Circuitry
  • 12 volt trigger output
  • Dash mount control
  • PFM Subsonic Filter
  • Balanced Pre-amp inputs

SPECIFICATIONS

INPUTS

  • Preamp Inputs: 1 (2 channels)
  • Maximum Input Level: 9.5Vrms
  • Aux Input: 1 (2 channels)
  • Speaker Level Inputs: 1 (2 channels)
  • Maximum Speaker Level Input: 400W at 4Ω
  • Input Impedance: 20kΩ

OUTPUTS

  • Preamp Outputs: 1 (2 channels)
  • Maximum Output Level: 9.5Vrms
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.003%
  • Frequency Response: 10Hz-22kHz
  • Signal to Noise: 110dB
  • Balanced Input Noise Rejection: >60dB

CONTROL

  • Remote In
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 285mA
  • Recommended Fuse Rating: 2A

WEIGHTS & DIMENSIONS

  • Dimensions: 8”W x 6.25”D x 1.15”H
  • Weight: 3.5lbs (1.6kg)

IN THE BOX: The Epicenter Plus, ACR-2 Remote, Power Connector, Manual, Warranty
