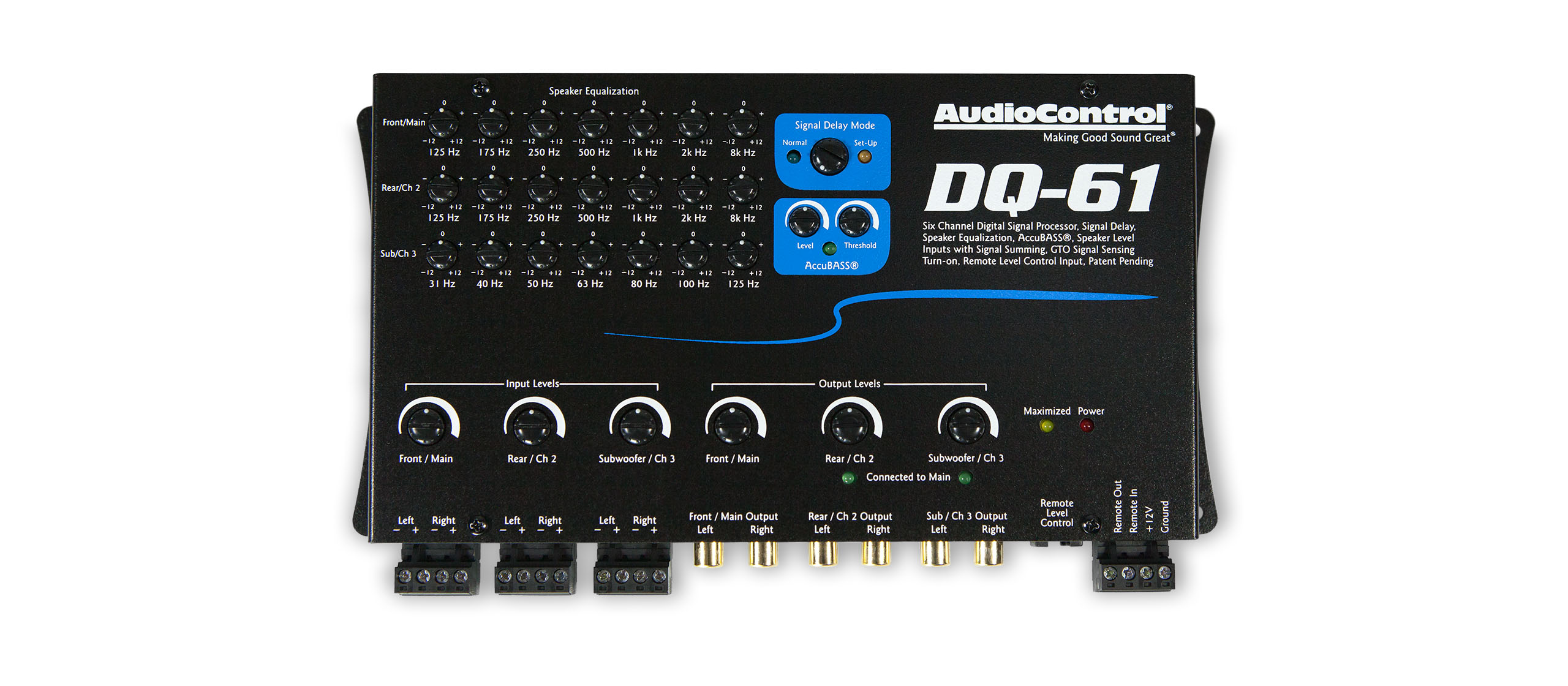

DQ-61

6 CHANNEL LINE OUT CONVERTER WITH SIGNAL DELAY AND EQ

The environment of today’s automobiles present challenges for the installation of a performance car audio system when matched to a factory source unit. Less than ideal speaker locations coupled with an acoustically unfriendly environment can compromise the experience.  Fortunately for audio enthusiasts, the new AudioControl DQ-61 delivers the processing power necessary to maximize the audio experience.

AudioControl engineers designed the DQ-61 to be an extraordinary processor, so subsequently it is equipped with a number of installer friendly features that simplify the OEM connection and calibration process.

User friendly Signal Delay controls allow the listeners the ability to align themselves between the left and right speakers plus seamlessly blend in the subwoofer to the listening environment. Discrete equalization controls provide listeners with powerful processing to properly “tune” their audio systems and enjoy truly amazing sound.

Designed for maximum sound quality and enhanced audio performance, the DQ-61 is the latest AudioControl processor to incorporate AccuBASS®. This patent pending process automatically corrects for the bass roll-off that is common with many factory-installed audio systems.

Read the press release >

FEATURES

  • Free iOS Mobile Tools app with DQ-61 Delay module  Download_on_the_App_Store_Badge_US-UK_135x40
  • User friendly Signal Delay enhances the acoustical alignment between the left and right channels plus the front and subwoofer channels
  • Individual equalization controls for the front, rear and subwoofer channels for simple yet precise system tuning
  • Six channels of active speaker level inputs – accepts up to 400 watts per channel
  • AccuBASS® – AudioControl’s patented pending processing to correct the bass roll-off in factory source units
  • ACR-3 Dash Control Remote allows for control of the subwoofer level plus processing bypass which makes it ideal for demonstrations
  • Internal Channel Summing – Easy interface with factory installed amplifiers with built-in crossovers
  • GTOTM (Great Turn-On) Circuit – Powers up the DQ-61 when it detects signal on the main speaker level input
  • Discrete Input and output level controls

SPECIFICATIONS

INPUTS

  • Speaker Level Inputs: 3 (6 channels)
  • Maximum Input (speaker level): 400W per channel at 4Ω
  • Input Impedance: 20kΩ

OUTPUTS

  • Preamp Outputs: 3 (6 channels)
  • Maximum Output Level: 7.5Vrms
  • Output Gain: ±12dB
  • Output Impedance: 150Ω

PERFORMANCE

  • Total Harmonic Distortion: 0.01%
  • Frequency Response: 10Hz-22kHz
  • Equalizer Frequencies (front/rear): 125Hz, 175Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
  • Equalizer Frequencies (sub): 31.5Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz
  • Signal Delay Max (Left/Right): 10ms
  • Signal Delay Max (Front/Sub): 35ms

CONTROL

  • Remote In
  • 12VDC Remote Out (always active when unit is on)

GENERAL

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 350mA
  • Recommended Fuse Rating: 2A

WEIGHTS & DIMENSIONS

  • Dimensions: 8.6”W x 5”D x 1.25”H
  • Weight: 3.0lbs (1.4kg)

IN THE BOX: DQ-61, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
